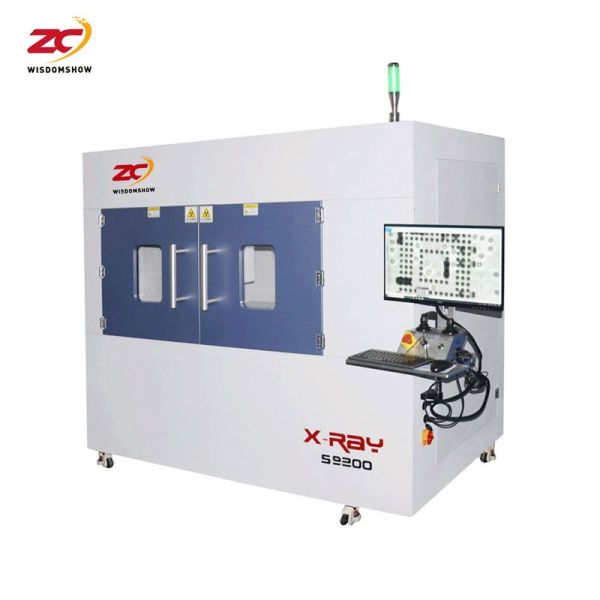

S-9200 IC Metal Component Inspection X-ray SMD PCB Detection Machine
The S-9200 is an advanced, high-performance micro-focus X-ray inspection system, integrating Japanese Hamamatsu micro-focus X-ray tubes and a high-definition flat-panel detector for superior imaging quality. Designed for precision non-destructive testing (NDT), it delivers high-resolution, real-time inspection with AI-powered defect recognition, making it an efficient and cost-effective solution for industrial quality control.
Key Features
- High-Resolution Imaging: 1536×1536 pixel detector with 5.8 Lp/mm resolution, 130 kV microfocus X-ray source (85 μm spot size) for sharp imaging, 20 fps real-time scanning for dynamic inspection
- AI-Powered Defect Detection: Built-in AI algorithms for automatic flaw recognition (voids, cracks, misalignment, etc.), customizable detection models for industry-specific needs
- Large Inspection Area & High Load Capacity: Scanning area: 900×700 mm (adjustable), max sample weight: 10 kg (industrial-grade)
- Safety & Compliance: Radiation leakage <1 μSv/h (below international safety limits), lead-steel shielding + safety interlock system, certified with China Radiation Safety License
Standard Configuration
- X-Ray Source ×1 (Hamamatsu 130 kV microfocus tube)
- Flat-Panel Detector ×1 (iRAY 130×130 mm)
- Industrial PC ×1 (Advantech)
- 24" HD Monitor ×1
- Motion Control System ×1 (Googoltech card + servo motors)
- Lead-Shielded Chamber ×1 (Wisdomshow-designed)
- Inspection Software ×1 (AI algorithm supported)
Widely Applied For
- Semiconductor & Electronics: BGA, CSP, Flip Chip, LED, IC, PCB, Fuse, Diode
- Battery Industry: Pouch cells, 18650 batteries, electrode alignment
- Advanced Manufacturing: Small metal castings, electronic connectors, cables, photovoltaic modules
Frequently Asked Questions
What is the smallest detectable defect size?
5 μm-level (depends on material density/thickness).
Can it integrate with automated production lines?
Yes, supports PLC communication for inline inspection.
Is radiation exposure safe?
Yes! Leakage is <1 μSv/h (lower than natural background radiation).
Product Parameters
Packing & Shipping
- Standard Export Wooden cases
- Delivery in 2 workdays after payment confirm
- Shipping by TNT, DHL, FEDEX, or by air or by sea
- Loading port: Shenzhen or Hongkong
