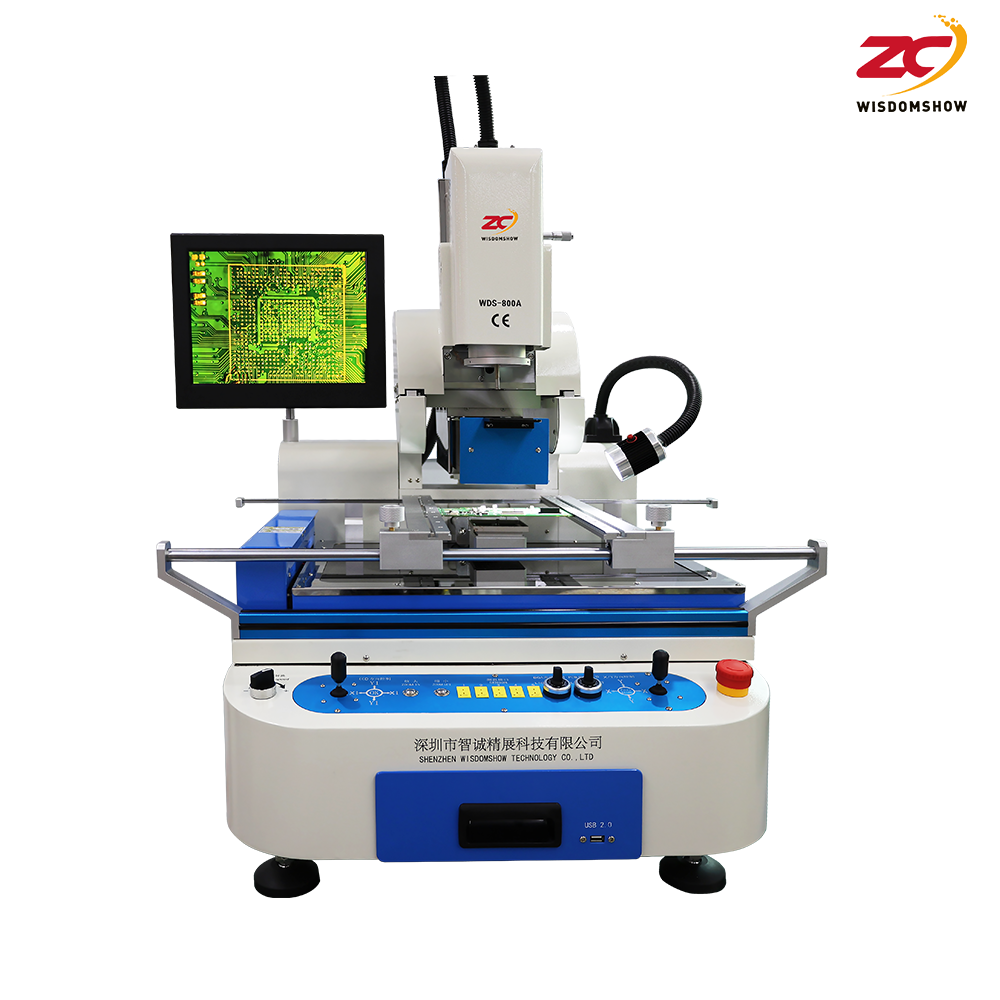

Full Automatic WDS-800A Soldering and Desoldering Rework Station
Professional BGA rework station for electronic PCB mainboard repair, designed for iPhone, PlayStation, Xbox console, and other electronic device maintenance.
Main Features
- Integrated hot air head and mounting head design with automatic soldering and desoldering functions
- Independent 3-heater system with synchronized upper and lower heaters for complete IR coverage
- Motor-controlled lower heater with X/Y axis movement and PCB support
- High-precision slider system for accurate BGA and PCB mounting
- German-imported heating materials with IR tube and heat-resistant glass (up to 1800°C)
- Large pre-heating area of 500×420mm
- Integrated preheating table, clamping device, and cooling system with X-axis movement
- Motor-controlled X and Y axis alignment for efficient space utilization
- Maximum PCB size capacity: 650×610mm with no repair dead corners
- Dual rocker camera control for precision alignment
- Built-in 360° rotating vacuum pump with fine-adjusting mounting suction nozzle
- Automatic BGA pickup and mounting height detection with pressure control
- 10-segment temperature control with parameter curve analysis
- Multiple alloy nozzle sizes with full-angle positioning
- 5 thermocouple ports for real-time multi-point temperature monitoring
- Automatic SMT standard temperature curve generation
- Optional camera for observing solder melting points
BGA Repair Process
How to Separate BGA Chip from Motherboard
- Desoldering - Separate BGA chip from motherboard
- Clean Pad - Prepare the contact surface
- Reballing or replace with new BGA chip
- Alignment/Positioning - Using silk frame or optical camera
- Soldering - Install new BGA chip
Technical Specifications
| Parameter |
Specification |
| Power Supply |
AC 220V±10％ 50/60Hz |
| Total Power |
7600W |
| Heater Power |
Upper temp.zone 1200W, Second temp.zone 1200W, IR temp.zone 5000W |
| Electrical Material |
High sensitive touch screen + temperature control module + PLC + step driver |
| Temperature Control |
High precision K shape sensor (Closed Loop), Precision ±2℃ |
| Locating Way |
V shape holder & universal jigs |
| PCB Size |
Max 610×500mm, Min 10×10mm |
| Applicable Chips |
Max 90×90mm, Min 0.3×0.6mm |
| PCB Thickness |
0.5-8mm |
| Max BGA Weight |
1000G |
| Mounting Precision |
±0.01mm |
| Overall Dimension |
L780×W980×H950mm (without frame) |
| Thermo-couple Ports |
5 pcs |
| Machine Weight |
140KG |
| Alignment System |
Optical lens + HD industrial camera |
| Min. Ball Pitch |
0.15mm |
Product Images
Shipping & Packaging
- Standard Export Wooden Cases
- Delivery within 2 workdays after payment confirmation
- Shipping via TNT, DHL, FEDEX, air or sea freight
- Loading port: Shenzhen or Hong Kong
Company Profile
Shenzhen Wisdomshow Technology Co., LTD.
Professional BGA Rework Station Manufacturer
- Business philosophy: "professional, integrity, excellence, customer first"
- Leading manufacturer of BGA rework stations
- Over 10 years' experience in BGA rework industry
- All models CE Certified and ISO compliant
- 100% QC inspection before shipment
- Customized brand logo available
- Large global market share
Services & Support
- 24-hour technical support via email or phone
- One-year warranty (other costs borne by buyer)
- Demo operation videos for training
- On-site demonstration available at our facility
- Friendly English user manual provided
- Professional after-sales service
- Competitive pricing with agency discounts
